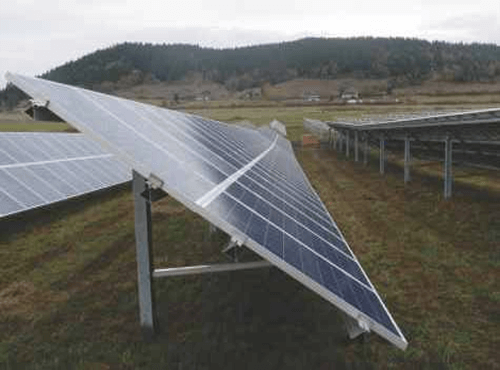

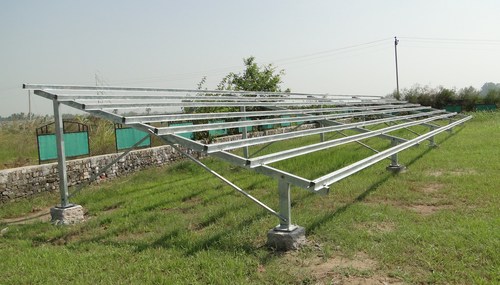

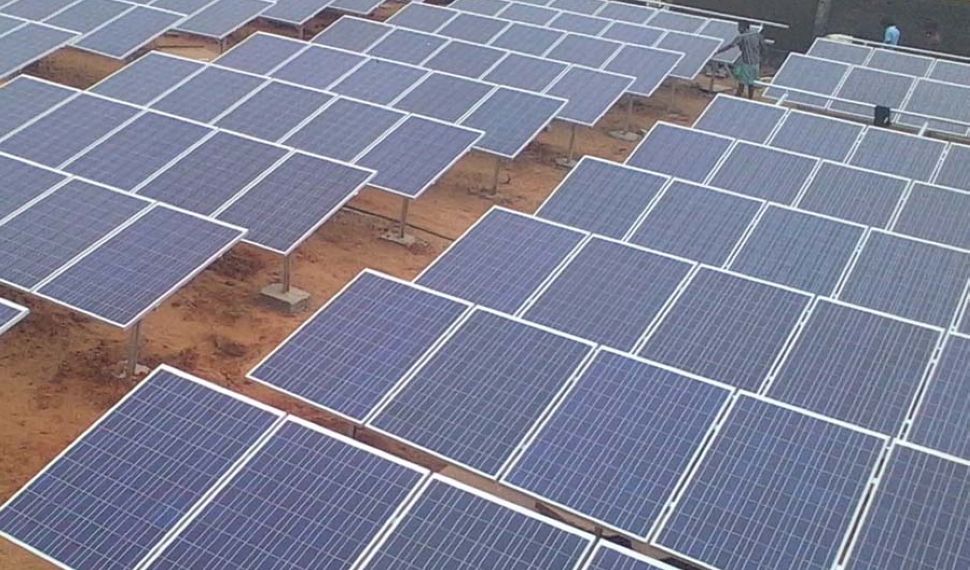

Single Pole Structure

Single Pole Structure can be used in numerous of Soil Conditions and vary to a wide range of structures for domains. These structures can be used Rajasthan to rocky soil in MP and hard dry soil. These are easy to install, Economic and robust, Rugged Design passes through all tests to give you complete peace of mind. These Comes in different type like C ON C, HAT ON C AND HAT ON HAT STRUCTURE. Preferred orientation is portrait but it is available in both landscape and portrait orientation. Foundation or ramming.

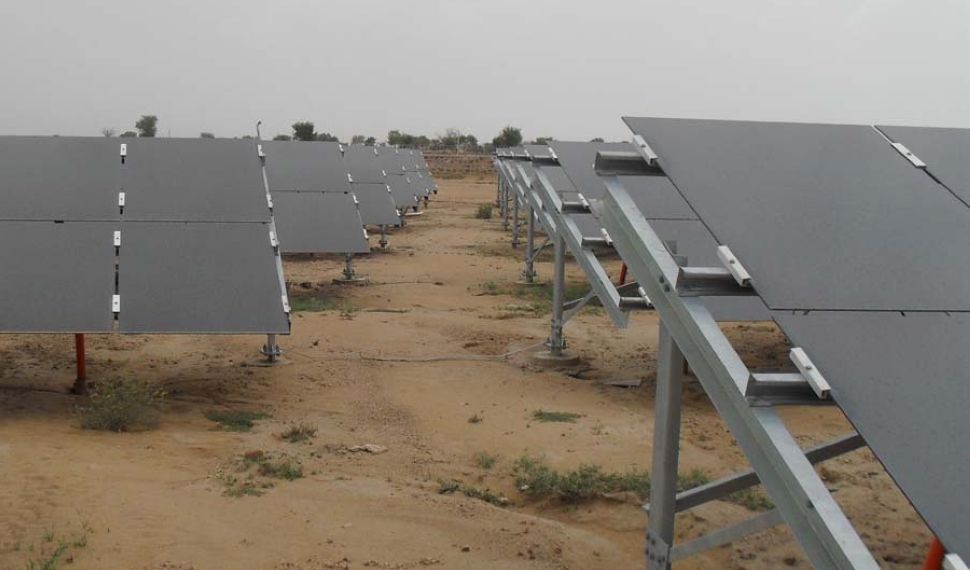

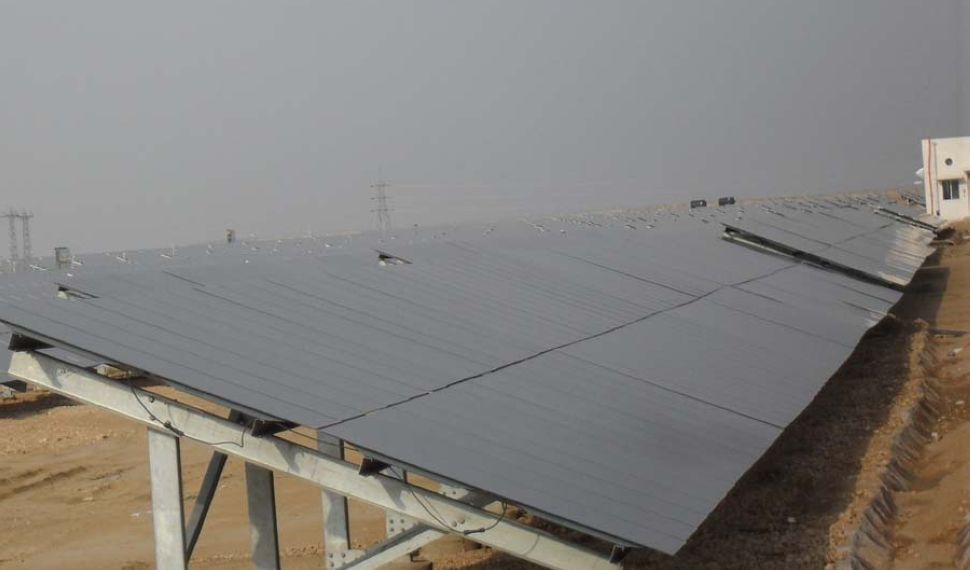

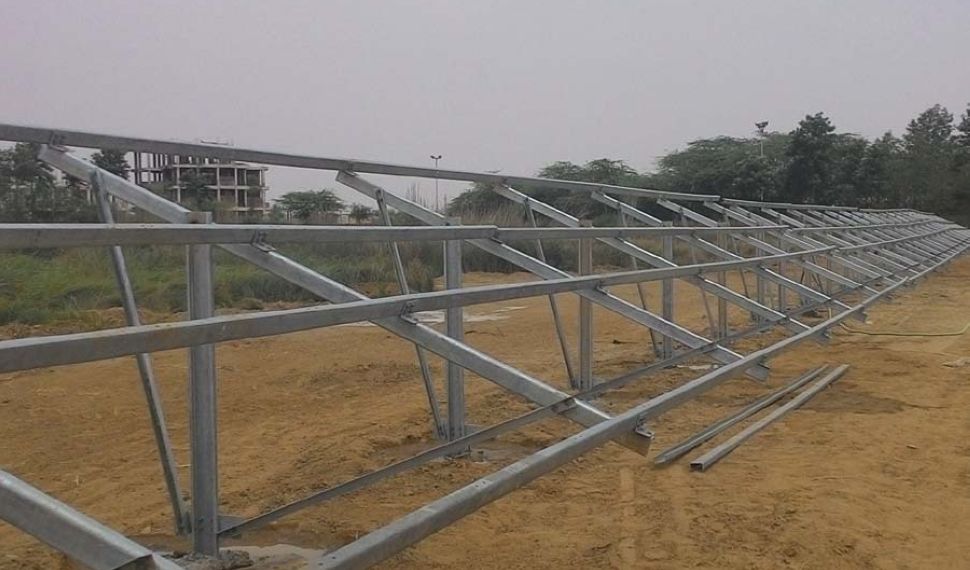

Double pole structure

This type of structure is preferred in various types of soil conditions are not as normal types then Dual Pole type structures are used. However it also preferred to house more no of modules. The Dual Pole structure can readily house upto 180modules per table in landscape orientation and also an optimization of array configuration can be achieved.

SPECIAL FEATURES

• Suitable for any terrain
• Robust model to last long
• Economical design
• Easy in transportation & Installation
• Fast installation design to save time and money
• Best in class manufacturing facility and process
• Optimized solution for better generation
• Location, soil and wind data specific design and testing
• Saves time and money
• Elevation angle between 10 to 10 degrees or as per requirement for optimized array configuration
• 5yrs warranty extendable upto 15yrs

TECHNICAL SPECIFICATION

• The structure comprises of vertical post, rafter, bracings, purlin & gussat plate along with accessories
• L Brackets connect the vertical rafter to horizontal rafter or the purlin as per the design, L Brackets are used specifically when the interacting component possess C Sections
• Designed for wind speeds 120-200 Kmph
• Orientation : Portrait/ Landscape
• Ground Clearance 400 – 800 MM
• Approximate mass of structure excluding the module weight 4.5 – 7 Kg/m2
• Concrete consumption 80-100 M3/MWp
• Orientation : Portrait/ Landscape
• Galvanization :
  • Post Hot Dipped – 80 -120μ
  • Pre Galvanized Ms 550gsm
  • Galvalume 150 Gsm
• Yield Strength : 250 – 350 Mpa (ms), 550 Mpa ( Galvalume)

GREEN TILT is a ground mounted as well as roof mounted structure solution designed to be adjusted to various tilt angle manually so that maximum generation can be achieved by changing the structural tilt angle seasonally or at least thrice during a year.

SPECIAL FEATURES

TECHNICAL SPECIFICATION

These structures are design to have maximum stability factor while testing it virtually on numerous of Software tools to make it a ideal solution for our customers. Apart from this we give attention to various aspects of the design to make it light, Stable and definately light on your Pocket. Easy to install as the no of loose members are very few, you can assemple a whole 15KWp table in a single day along with modules.

SPECIAL FEATURES

• Robust model to face any weather conditions
• Can be installed in any soil conditions
• Proper Civil foundation design to give you peace of mind
• very few members to be fitted on site
• Fast connecting members
• All hardware's are of Hot Dipped Galvanized to give long Life
• Assistance provided for INC of structures
• So Easy to install that you can install 15KWp table in 1day with modules and other things
• customized designs are available
• Good aesthetics so can be used anywhere you need it

TECHNICAL SPECIFICATION

• The structure comprises of trusses, beams vertical pillers, rafter, bracings, purlin & gussat plate along with accessories
• The purlin are attached to trusses with the help of l brackets
• Designed for wind speeds 150-200 Kmph
• Orientation : Portrait/ Landscape
• Ground Clearance 2m & max upto 4m
•  Approximate mass of structure excluding the module weight 18to 25 Kg/m2
• Chemical anchoring is provided
• Orientation : Portrait/ Landscape
• Galvanization : Post Hot Dipped 80microns to 120microns
• Pre Galvanized MS 550gsm
• Yield Strength : 250 to 350 Mpa (ms)
• Customized design are provided as per the roof and client requirement

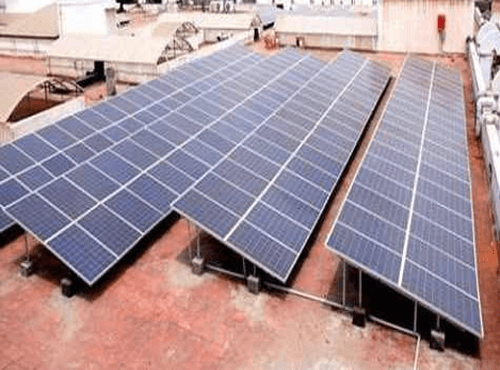

Robust testing of the design is done with different design tools to give our client piece of mind. Complete structure is bolted and very easy to install so it is easy in transporting, stocking and installing. Green Optima is specifically designed for installation in small & constrained spaces and can be arranged in various configurations by iterating the structural components and their operative section types. Based on the type of design Green Optima can be categorized in two types : Single Pole Structure & Double pole structure

SPECIAL FEATURES

• The structure comprises of vertical post, rafter, bracings, purlin & gussat plate
  along with accessories
• L Brackets connect the vertical rafter to horizontal rafter or the purlin as per the
  design, L Brackets are used specifically when the interacting component
  possess C Sections
• Designed for wind speeds 150-200 Kmph
• Orientation : Portrait/ Landscape
• Ground clearance 400 – 600 MM
• Approximate mass of structure excluding the module weight 4.5 – 7 Kg/m2
• Chemical anchoring is provided
• Orientation : Portrait/ Landscape
• Galvanization :
  • Post hot dipped – 80μ -120μ
  • Pre Galvanized Ms 550gsm
• Yield Strength : 250 – 350 Mpa (ms)
• Customized design are provided as per the roof and client requirement

TECHNICAL SPECIFICATION

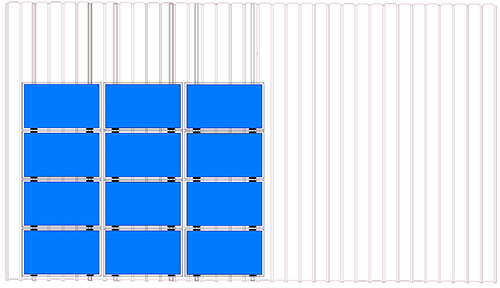

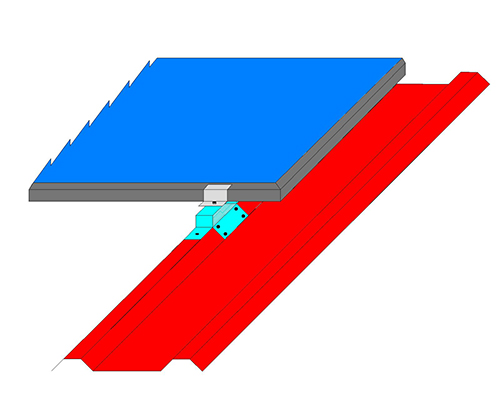

Omega Clamp with clip

• Omega clamp are member of structure which is fastned to the sheet roof profile with pop rivet
• Epdm rubber is used for waterproofing as well as frictional agent
• Silica sealent is used for more protection
• It is designed to cater wind load of 140-200kmph
• Module fastned with anodized aluminium clamps with ss fastners
• Post galvanized steel/ aluminium is used
• Tilt angle: parallel to roof

ORIENTATION : LANDSCAPE

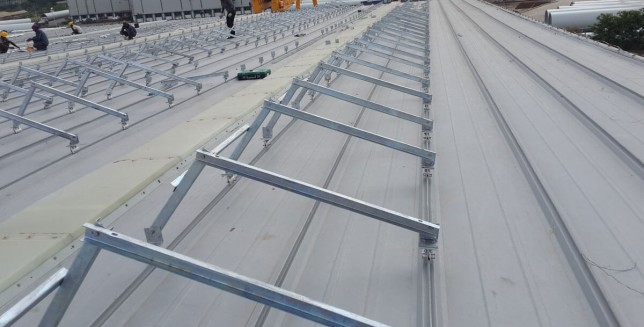

With HDG Steel/ Aluminium rails

• This is used on roof with trapezoidal profile as well as for roof with detoriated condition or curved profiles
• L brackets or strut chanel are provided for mounting modules along with epdm sheets
• Self tapping screws are used to mount l brackets/ struts
• Spring nuts, allen bolt and anodized aluminium clamps are used to mount modules on rails
• Silica sealent are used for more protection
• Post galvanized steel/ anodized aluminium rails used
• Yield strength : 250-350mpa
• Wind loading 140-200 kmph
• Tilt angle : parallel to roof

ORIENTATION : LANDSCAPE/PORTRAIT

Elevated Profile for additional Angles

These structures are basically used where the tin shed roof is at 0 degrees or have certain degree but we want to add more degrees. These are mostly made up of Aluminium which is connected to rails through holding clamps. The Rails are connected to the Shed purlin through self drilling screws and the other members are attached either by bolts or by rebits. This design is very robust and rugged to withstand any weather condition.

SPECIAL FEATURES

TECHNICAL SPECIFICATION

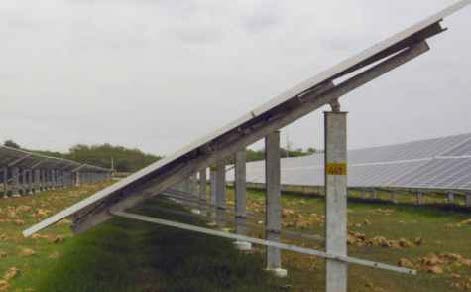

GREEN TILT is a ground mounted as well as roof mounted structure solution designed to be adjusted to various tilt angle manually so that maximum generation can be achieved by changing the structural tilt angle seasonally or at least thrice during a year. The GREEN TILT has the following component and feature:

SPECIAL FEATURES

• It consist of vertical post, vertical rafter and bracing which form a triangular support for the structure at required tilt angle
• Bracing have a provision for multiple holes of which each holes corresponds to a specific tilt angle
• Hinge mechanism is there which consist of hinge plates on which hinges are welded permitting mating of the hinges for free rotational motion also in single
  axis
• CS purlins are used for better strength and ease of installation along with l brackets
• Designed for wind speed of 140-180kmph
• Orientation : portrait/ landscape
• Tilt angle : optimal tilt angle can b provided as per the pv syst analysis
• Ground clearance : 400-800mm
• Hinge: post galvanized ms 80-120 μ yield strength : 250- 350mpa
• Mounting structure : post galvanized 80-120μ pre galvanized 550 gsm coating yield strength : 250 -350 mpa

TECHNICAL SPECIFICATION

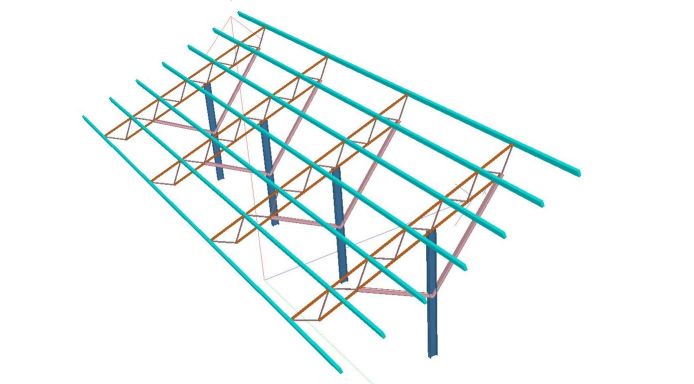

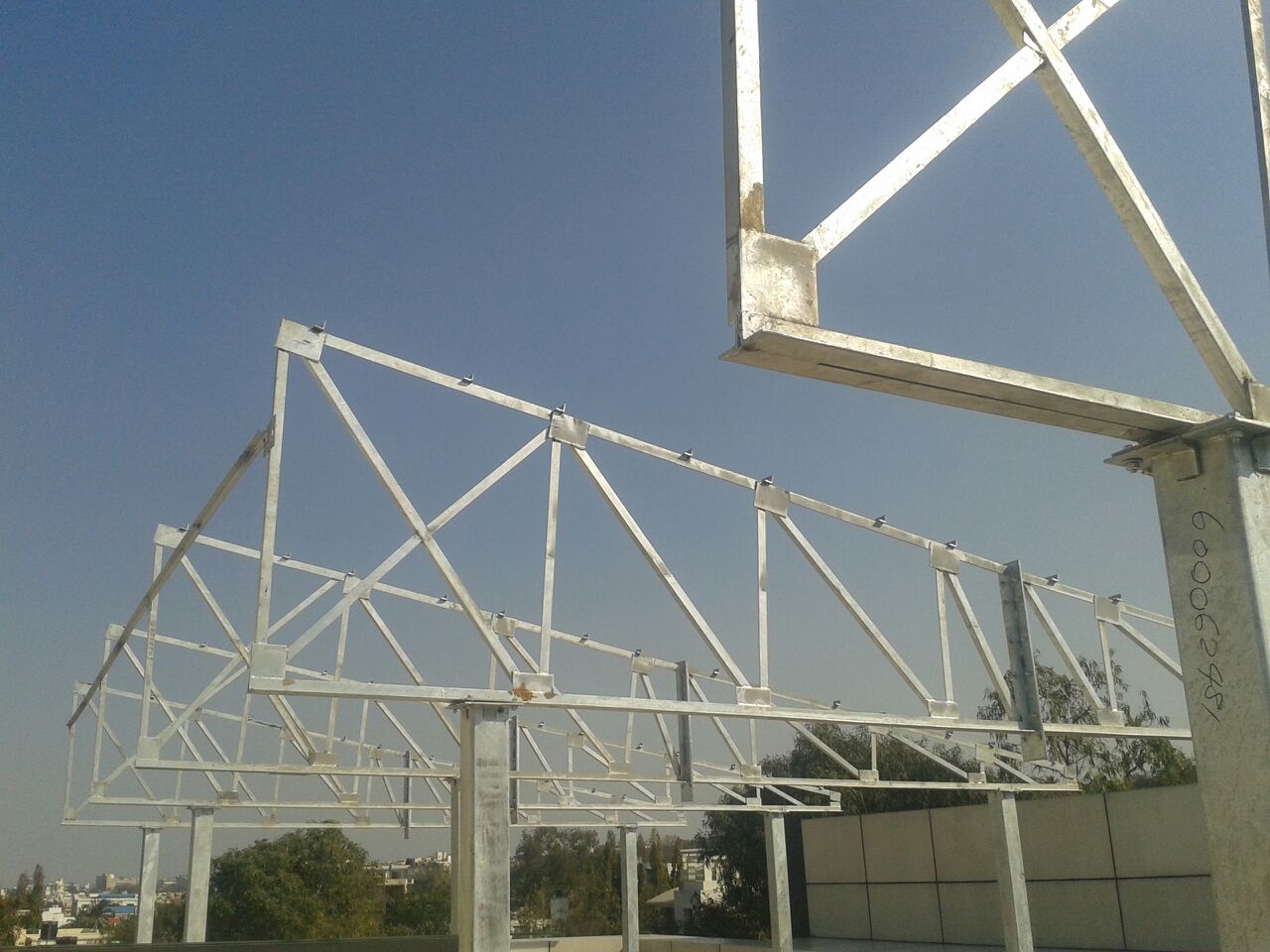

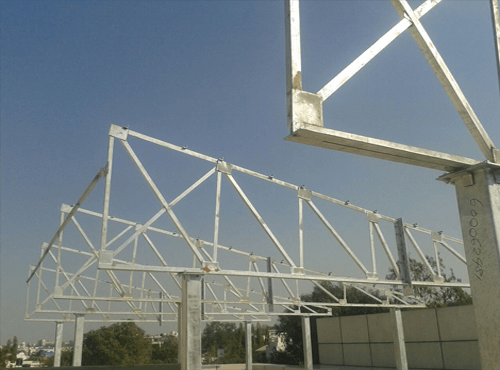

• The structure comprises of trusses, beams vertical pillers, rafter, bracings, purlin & gussat plate along with accessories
• The purlin are attached to trusses with the help of l brackets
• Designed for wind speeds 150-200 kmph
• Orientation : portrait/ landscape
• Ground clearance 2m, 4m
• Approxiwate mass of structure excluding the module weight 18 25 kg/m2
• Chemical anchoring is provided
• Orientation : portrait/ landscape
• Galvanization : post hot dipped , 80, -120
• Pre galvanized ms 550gsm
• Yield strength : 250, 350 mpa (ms)
• Customized design are provided as per the roof and client requirement

SPECIAL FEATURES

TECHNICAL SPECIFICATION

Manual tracking structures

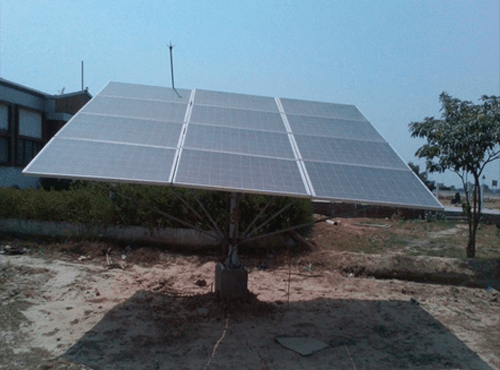

As we are experienced and pioneer in all type of structures, We at Go Green hadn't left any untouched area in the field of Mounting system. Our structures are Robust, Easy to Install, Easy to handle and Light on Pockets. to use more power of sun and help our farmers solar pumps are mostly made manual tracking type. We at Go Green had researched on lot of options of manual tracking to make the tracking more easy to install and handling and also to be light on pockets. Our structures are totally custom made as per the need of the customer.

SPECIAL FEATURES

TECHNICAL SPECIFICATION
